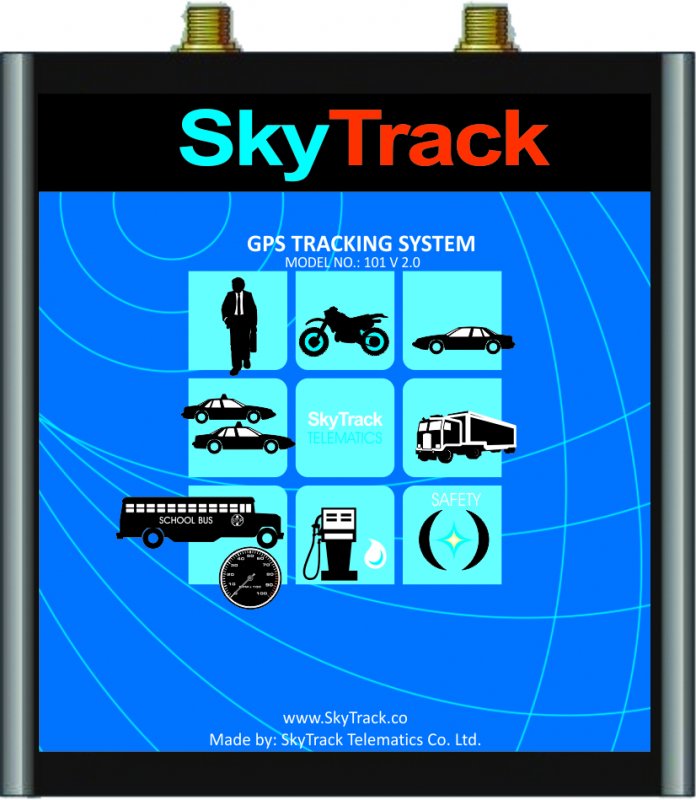

Skytrack

GPS Vehicle Tracking



SMS FORMAT SMS RESPONSE
Initialization begin123456 (Default password: 123456) begin ok
APN apn123456 apn's name Set APN OK!
IMEI imei123456 IMEI number
Set Number number 0(10 digit no.) ok!
Set APN apn123456 apnname Set APN ok
Set IP address, port ip144.76.96.153port9490 ok!
Close Monitor closemonitor123456 Close Monitor mode OK!



Features

  • Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times,
    and get the working status. You can choose the Positioning Platform by yourself
  • Triggering Emergency Alarm: When there is a emergency happened on the vehicle, you can put on the
    button and the installed unit will send out alarm to the authorized numbers.
  • Remote controlling oil and circuit: you can control the oil and circuit via the unit by SMS in anywhere and
    anytime.
  • Remote Monitoring: In anywhere and anytime, call the phone number in the unit, when it connects, you can
    monitor the sound around 5 meter.
  • Movement Alert: Send SMS to the unit to start the movement alert function. When the vehicle is moving,
    the unit will send the movement alert to all authorized numbers.
  • Overspeed Alert: Send SMS to the unit to start the movement alert function. When the vehicle is overspeed,
    the unit will send the overspeed alert to all authorized numbers.
  • Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the
    message to all authorized numbers when it breaches the district.
  • the unit: send SMS to resume the default of unit.
  • Auto Track: You can set up auto track by SMS or on-line positioning platform.
  • Mileage statistics: ACC checking; cutting off power and alarm.
  • Compatible with the original anti-theft alarm: It will send SMS alarm after the original anti-theft alarm
    warning.
  • Modify the IP and Port of Communication Protocol for different on-line positioning platform

Specifications

Content Specification
Dim. 85mmx 63mmx 25mm(3.3"*2.5"*0.98")
Weight 160g
Network GSM/GPRS/GPS
Band 850/1800/1900Mhz or 900/1800/1900Mhz or 850/900/1800/1900
GPS chip SIRF3 chip
GSM/GPRS module Simcom300 or Simcom340
GPS sensitivity -159dBm
GPS accuracy 5m
Time To First Fix Cold status 45s
Warm status 35s
Hot status 1s
Work voltage 10V—36V
Battery Chargeable changeable
3.7V1500mAh Li-ion battery
Standby
48hours

Storage Temp.

-40°C to +85°C
Operation Temp. -20°C to +55°C
Humidity 5%--95%non-condensing
